VF-5/40

  • 40
    TAPER
    • /
  • 3
    AXIS
    • /
  • 8.1k
    RPM
    • /
  • 20
    TOOL CAPACITY

*NOTE: Due to continual design improvements, 3D models and layout drawings may not be 100% accurate to the latest production model.

SPINDLES 8100-rpm Spindle
TOOL CHANGERS 20-Pocket Carousel Tool Changer
CHIP & COOLANT MANAGEMENT Window Air Blast
95-Gallon Coolant Tank
Variable Flow Coolant
THE HAAS CONTROL Control Touch Screen
Media Display M-Code; M130
HaasConnect: Remote monitoring
Early Power-Failure Detection Module
Ethernet Interface
WiFi Connection for the Haas Control
Safe Run
HaasDrop
Rigid Tapping
Standard Program Memory, 1 GB
Internal High-Voltage Isolated Transformer
SHIPPING Lifting Provision
WARRANTY 1-Year Standard Warranty
SPINDLES 8100-rpm Spindle GB
10,000-rpm Inline Grease-Packed Spindle >
10,000-rpm Spindle
10,000-rpm Spindle GB
12,000-rpm Spindle, HSK-A63
15,000-rpm Spindle
15,000-rpm Spindle, HSK-A63
30,000-rpm Spindle

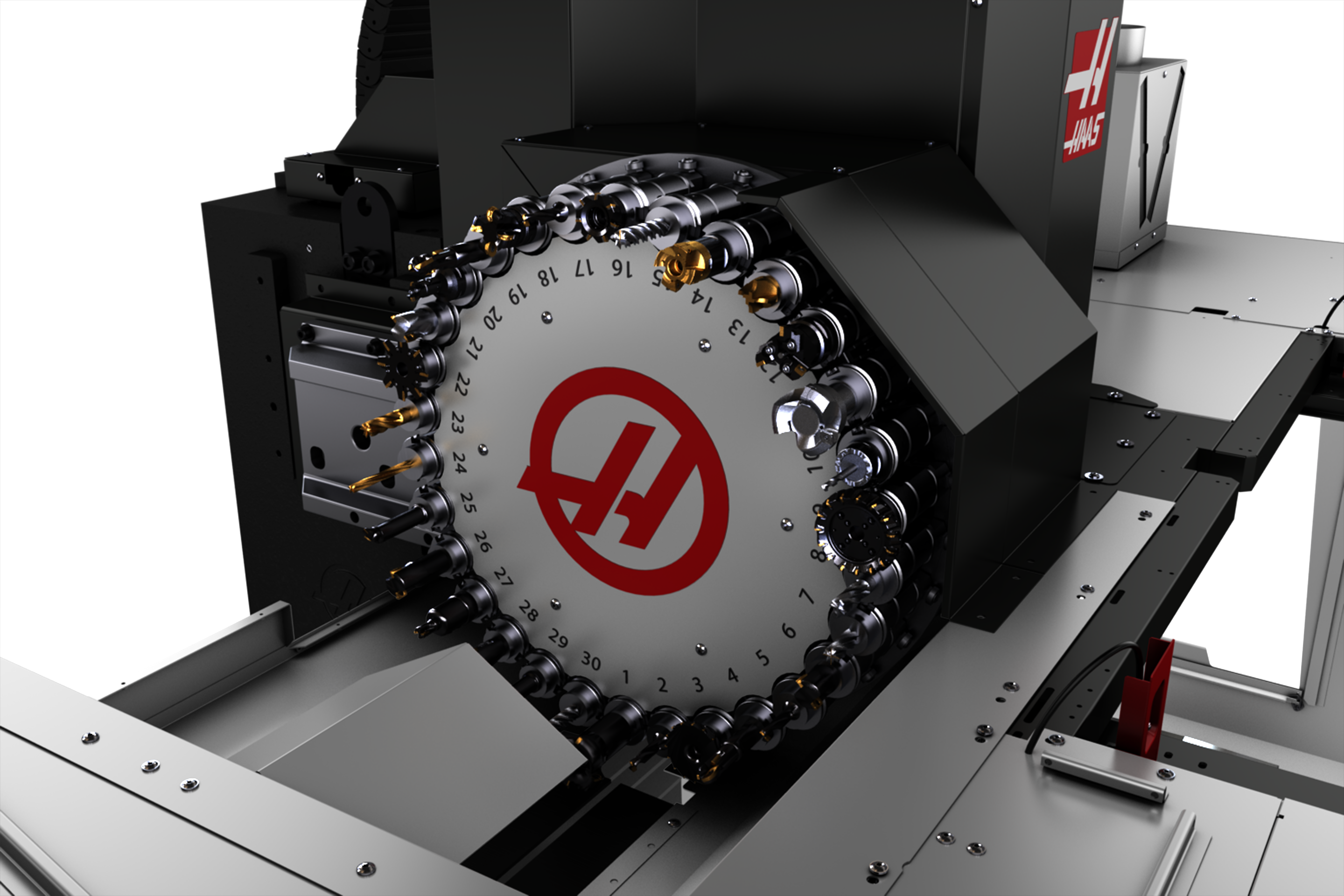

TOOL CHANGERS 30+1 Side-Mount Tool Changer
30+1 Side-Mount Tool Changer, HSK
50+1 Side-Mount Tool Changer
50+1 Side-Mount Tool Changer, HSK
4TH- | 5TH-AXIS 4th-Axis Drive and Wiring
5th-Axis Drive and Wiring
PROBING Wireless Intuitive Probing System
Probe Riser Block
Early Power-Failure Detection Module
Ethernet Interface
WiFi Connection for the Haas Control
Safe Run
HaasDrop
Rigid Tapping
Standard Program Memory, 1 GB
Internal High-Voltage Isolated Transformer
CHIP & COOLANT MANAGEMENT Programmable Coolant Nozzle
Automatic Air Gun
Minimum Quantity Lubrication
PulseJet System
Coolant Mist Condenser
Automatic Coolant Refill
Coolant Maintenance Package
Through-Tool Air Blast
Chip Auger
Haas Chip Lift
Multi-Chip Auger
Through-Spindle Coolant Ready
Through-Spindle Coolant
Through-Spindle Coolant, 1k
Coolant Chiller
Coolant Tank Oil Skimmer
Chip Tray Filter Kit
Auxiliary Coolant Filter
THE HAAS CONTROL CNC Control Cabinet Cooler
Provision to Accept Automatic Pallet Changer
Third-Party Rotary Provision
Remote Jog Handle with Touchscreen Display
Spindle Orientation
User-Definable Macros
Coordinate Rotation and Scaling
Dynamic Work Offsets and Tool Center Point Control
High-Speed Machining
32 GB Expanded Memory
64 GB Expanded Memory
Visual Part Programming System
8 Spare M Functions
M-Code/MFIN Cable Assembly
Second Home Position
PRODUCT OPTIONS Programmable Air
High-Intensity Lighting, 24V
WiFi Camera
Work Table Light
Auto Door for Mills

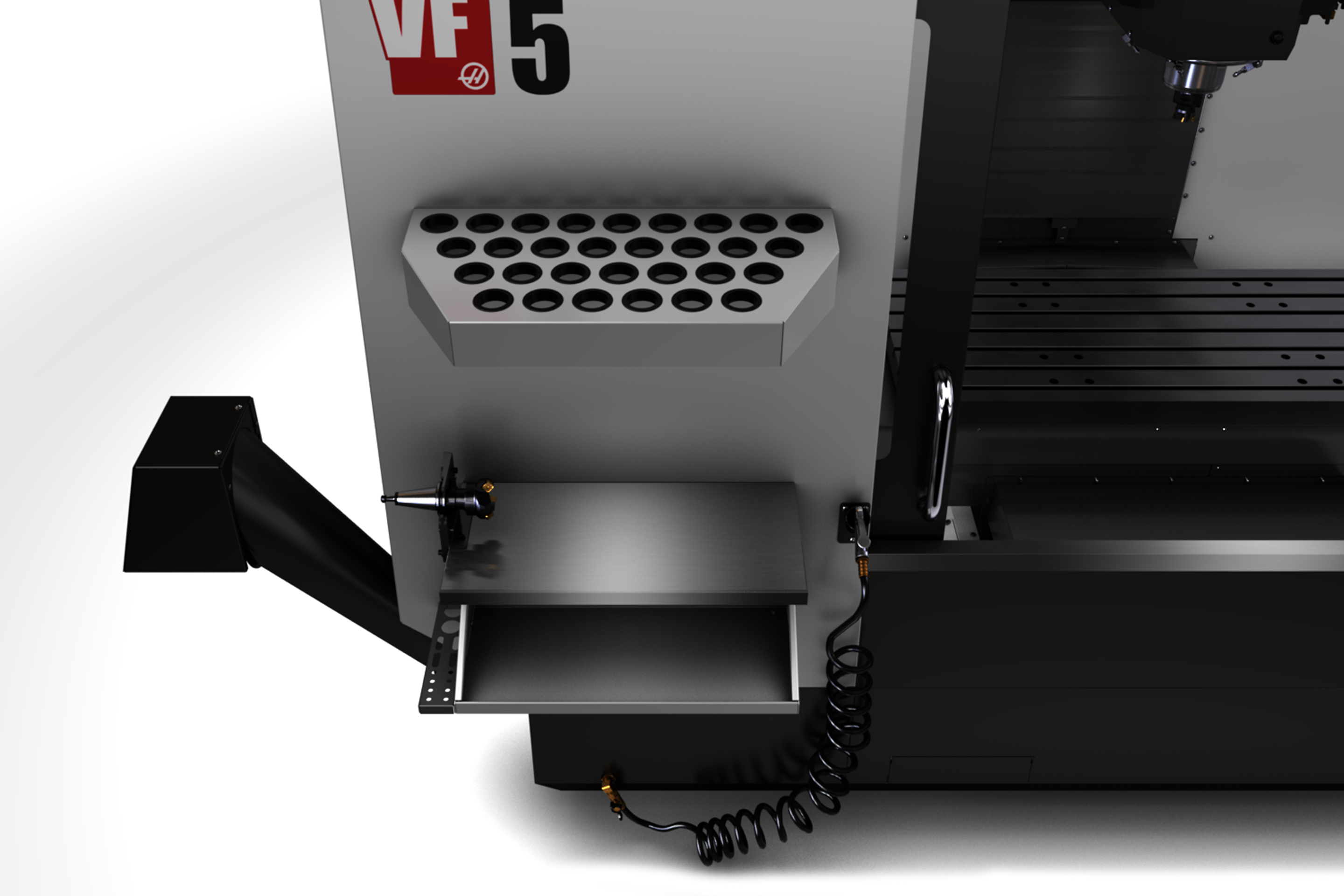

Accessory Tooling Block
TOOLING & FIXTURING Haas Tool Cart for 40-Taper Tools
10 Pull Studs, CT40
10 Pull Studs, CT40 for Through-Spindle Coolant
10 Pull Studs, BT40
10 Pull Studs, BT40 for Through-Spindle Coolant
Machine Anchoring Kit
SHIPPING Export Packaging
WARRANTY 1-Year Extended Warranty

Not all options are compatible with each other. Some options may require the purchase of additional options, or may include additional options at no charge. Please use our Build-&-Price tool to determine option compatibility, and configure your machine.

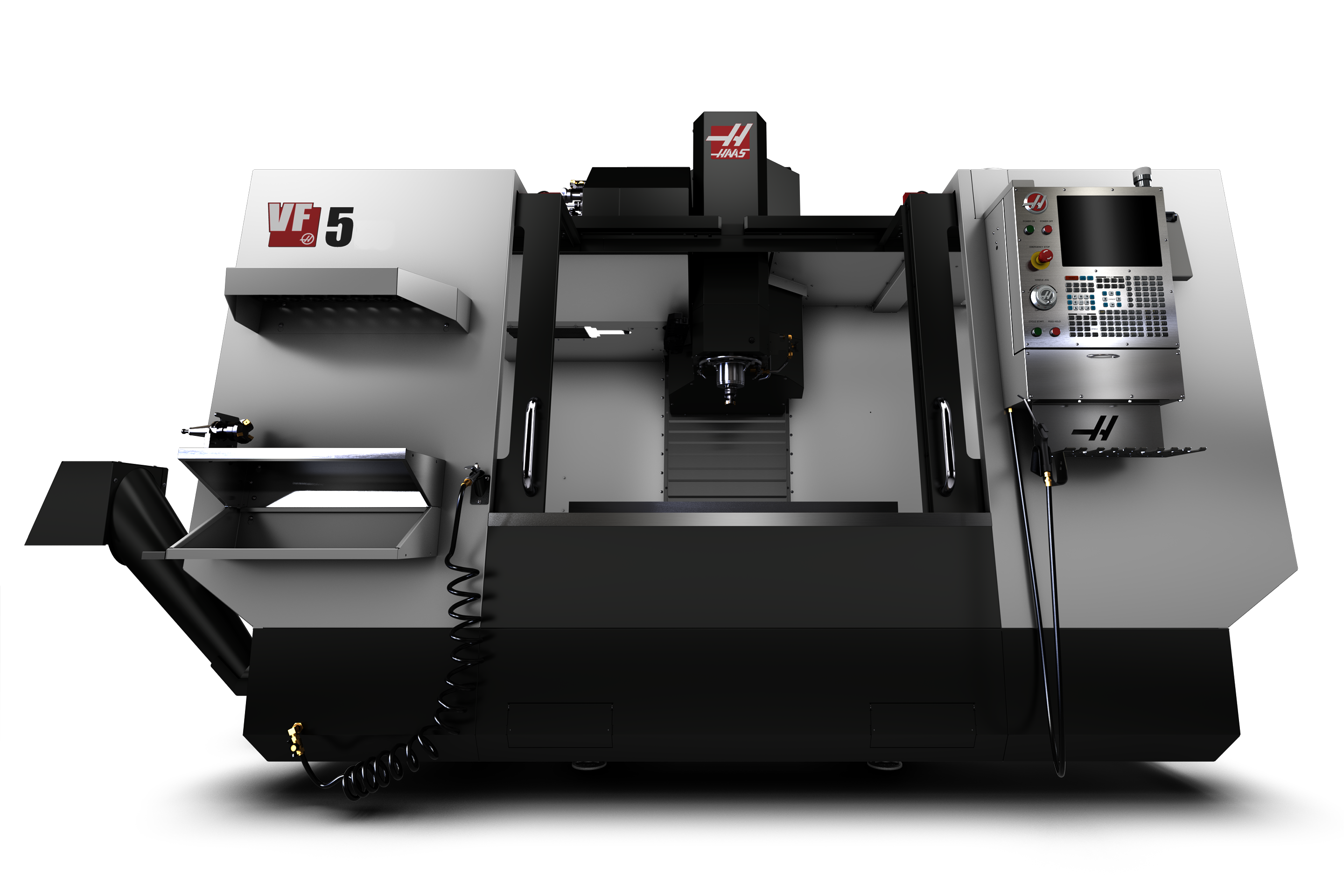

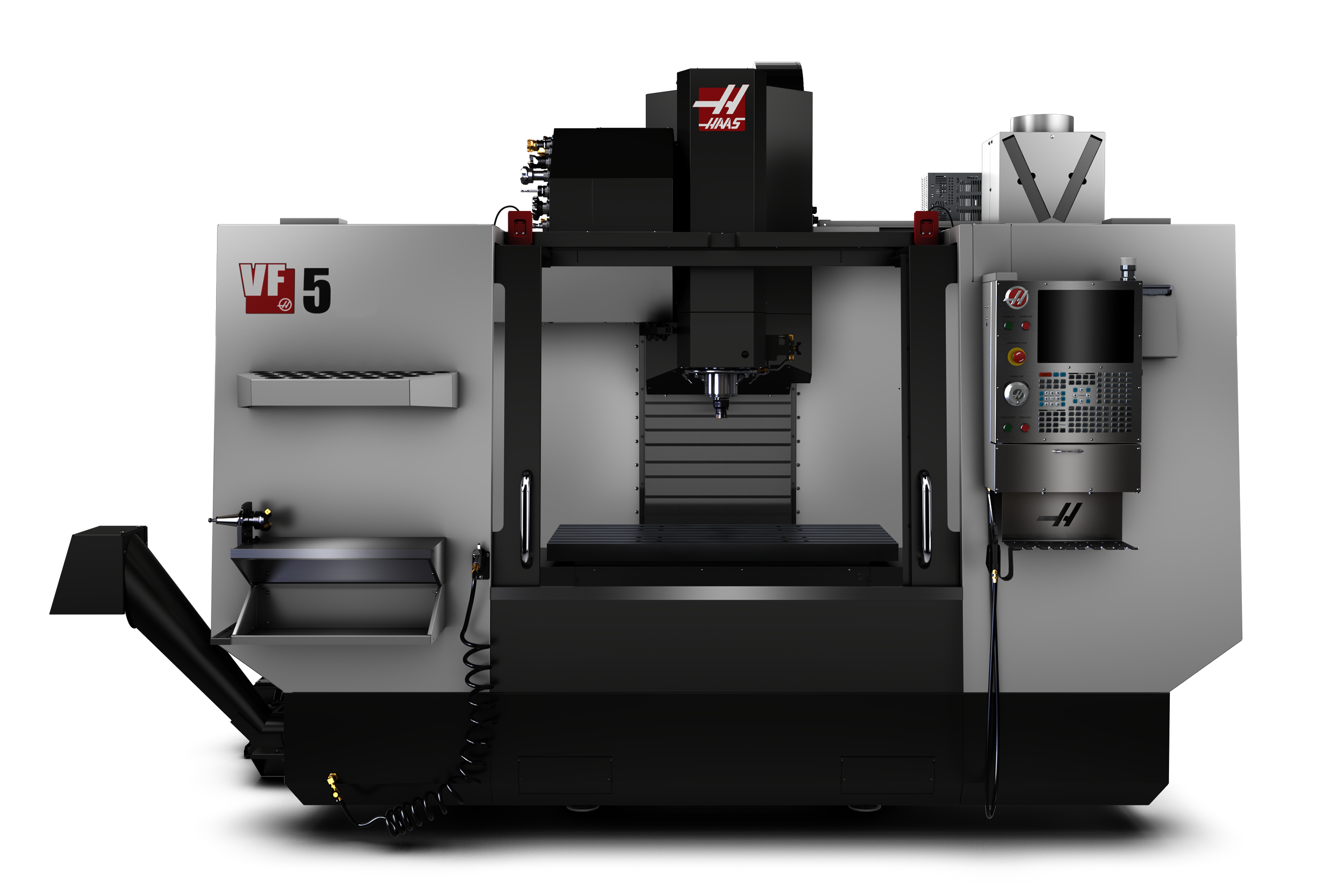

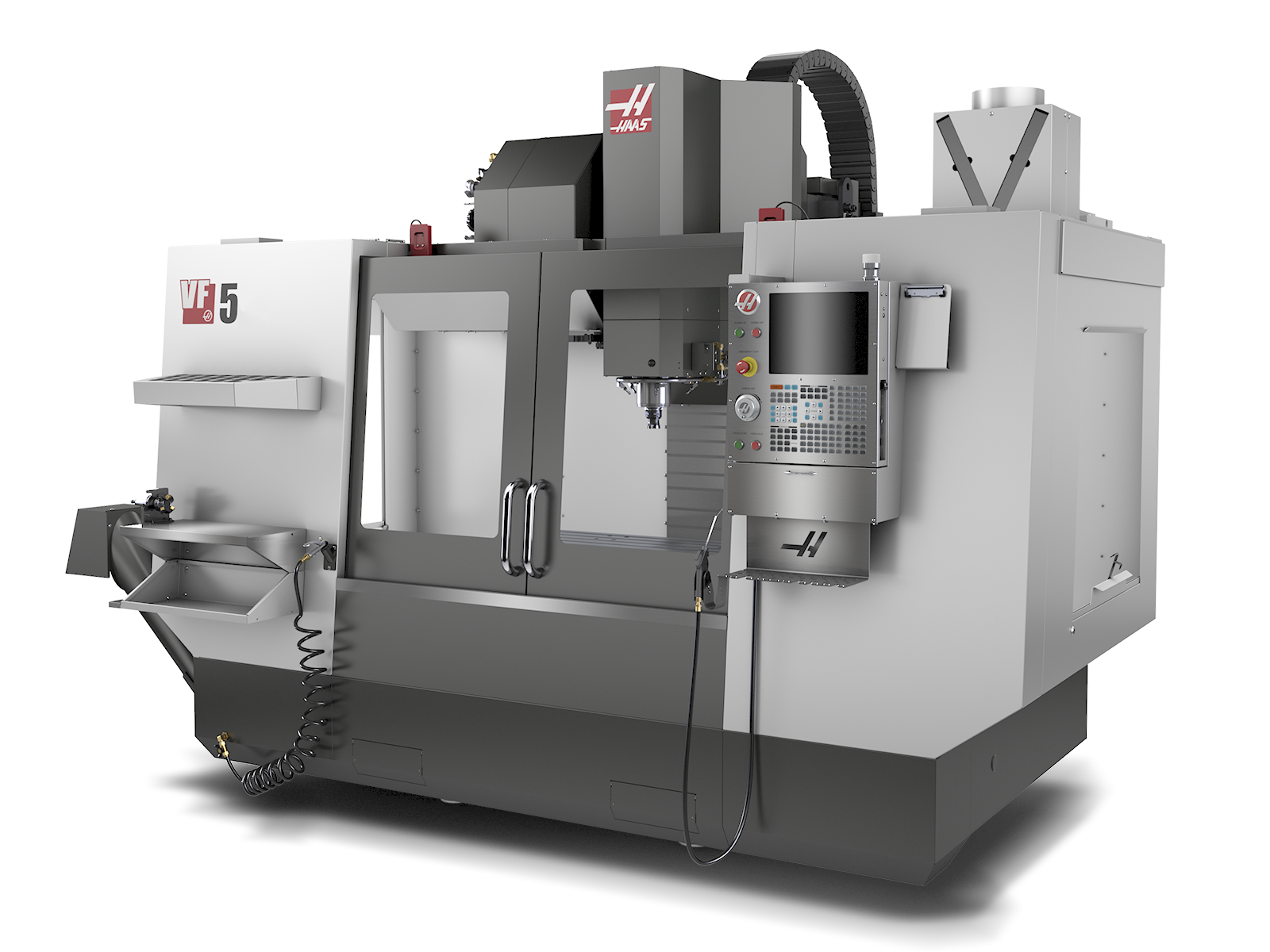

Haas offers a wide range of VF Series CNC models to match any size and production requirement. Regardless of your needs, there’s a VF just right to meet the demands of your machine shop. Every VF Series vertical machining center provides outstanding features at an excellent price, and features a wide range of available options to customize your machine to your exact needs. All Haas machines are designed and built in Oxnard, California, USA.

The VF-5/40 offers more Y-axis travel than the VF-4 models.

  • High-power, direct-drive spindle
  • Customizable to your needs
  • Our most popular model
  • Made in the USA
TRAVELS S.A.E METRIC
X Axis 50.0 in 1270 mm
Y Axis 26.0 in 660 mm
Z Axis 25.0 in 635 mm
Spindle Nose to Table (~ max) 29.2 in 742 mm
Spindle Nose to Table (~ min) 4.2 in 107 mm
SPINDLE S.A.E METRIC
Max Rating 30.0 hp 22.4 kW
Max Speed 8100 rpm 8100 rpm
Max Torque 90.0 ft-lbf @ 2000 rpm 122.0 Nm @ 2000 rpm
Max Torque w/opt Gearbox 250 ft-lbf @ 450 rpm 339 Nm @ 450 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Taper CT or BT 40 CT or BT 40
Bearing Lubrication Air / Oil Injection Air / Oil Injection
Cooling Liquid Cooled Liquid Cooled
TABLE S.A.E METRIC
Length 54.0 in 1372 mm
Width 24.0 in 610 mm
T-Slot Width 0.630 in 16 mm
T-Slot Center Distance 3.15 in 80 mm
Number of Std T-Slots 7 7
Max Weight on Table (evenly distributed) 4000 lb 1814 kg
FEEDRATES S.A.E METRIC
Max Cutting 500 ipm 12.7 m/min
Rapids on X 710 ipm 18.0 m/min
Rapids on Y 710 ipm 18.0 m/min
Rapids on Z 710 ipm 18.0 m/min
AXIS MOTORS S.A.E METRIC
Max Thrust X 2550 lbf 11343 N
Max Thrust Y 4100 lbf 18238 N
Max Thrust Z 4100 lbf 18238 N
TOOL CHANGER S.A.E METRIC
Type Carousel Carousel
Capacity 20 20
Max Tool Diameter (full) 3.5 in 89 mm
Max Tool Weight 12 lb 5.4 kg
Tool-to-Tool (avg) 4.2 s 4.2 s
Chip-to-Chip (avg) 4.5 s 4.5 s
GENERAL S.A.E METRIC
Coolant Capacity 95 gal 360 L
AIR REQUIREMENTS S.A.E METRIC
Air Required 4 scfm @ 100 psi 113 L/min @ 6.9 bar
Inline Air Hose 3/8 in 3/8 in
Coupler (Air) 3/8 in 3/8 in
Air Pressure Min 80 psi 5.5 bar
DIMENSIONS - SHIPPING S.A.E METRIC
Domestic Pallet 168 in x 102 in x 109 in 427 cm x 258 cm x 277 cm
Export Pallet 164 in x 92 in x 101 in 417 cm x 233 cm x 257 cm
Weight 12700 lb 5761.0 kg
Domestic Pallet w/50+1 SMTC 168 in 102 in 122 in 427 cm 260 cm 310 cm
Export Pallet w/50+1 SMTC 164 in 92 in 101 in 417 cm 233 cm 257 cm
Weight w/50+1 SMTC 12700 lb 5761 kg
ELECTRICAL SPECIFICATION S.A.E METRIC
Spindle Speed 8100 rpm 8100 rpm
Drive System Inline Direct-Drive Inline Direct-Drive
Spindle Power 30.0 hp 22.4 kW
Input AC Voltage (3 Phase) - Low 220 VAC 220 VAC
Full Load Amps (3 Phase) - Low 70 A 70 A
Input AC Voltage (3 Phase) - High* 440 VAC 440 VAC
Full Load Amps (3 Phase) - High* 35 A 35 A
*Haas machines are designed to operate on 220 VAC power. An optional internal high-voltage transformer (380 - 480 VAC) is available for all models, except the Desktop Mill, CL-1, and CM-1.

Note: This optional high-voltage internal transformer is not field installable; it must be ordered with the machine.
