In today’s competitive market, you need robust CNC turning centers with uncompromised performance and specifications to produce world class products quickly accurately and with minimum non productive time.
| Standard Accessories | Optional Accessories |
|---|---|
| Linear Motion Guide Ways | Chip Conveyor |
| AC Spindle Drive & AC Servo Drive | Bar Feeder |
| Machine with Tail Stock | Bar Puller |
| Hydraulic Chuck | Live Tooling |
| Bi-directional Electro Mechanical Turret or Hydraulic Turret | Stabilizer |
| Hydraulic Unit | Hydraulic Collet Chuck |
| Coolant System | Auto Door |
| Centralized Lubrication System | Oil Skimmer |
| Turning Tool Holders | Steady Rest |
| Boring Bar Blocks | Tooled Up Solution |
| Patrol Light | Tool Probe |
| Digital Tool Display | Work Probe |
| Foot Switch |

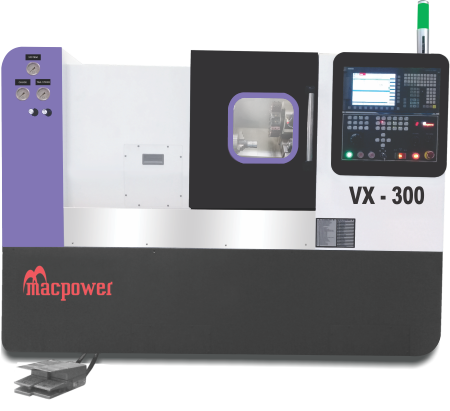

| DESCRIPTION | UNITS | VX 300 |
|---|---|---|
| CAPACITY | ||
| Std. Turning Dia. | mm | 165 |
| Max. Turning Dia. | mm | 320* |
| Swing Over Bed | mm | 500 |
| Max. Turning Length | mm | 325 |
| Dist. Between Center | mm | 350 |
| SLIDES | ||
| Cross (X axis) Travel | mm | 170 |
| Longitudinal (Z axis) Travel | mm | 325 |
| Rapid Feed (X & Z axis) | m/min | 30 |
| MAIN SPINDLE | ||
| Spindle Nose | - | A2-5 |
| Spindle Bore | mm | 54 |
| Max. Bar Capacity | mm | 42 |
| Chuck Size | mm | 165 X 3 jaw |
| Speed Range | rpm | 50 - 4000 |
| Full Power Speed Range | rpm | 1000 - 2250 |
| Spindle Motor (Cont. Rating) (15 Min. Rating) (Fanuc) |
kW | 7.5 / 11 |
| TURRET | ||
| No. of Stations | - | 8 |
| Tool Size | mm | 25 x 25 |
| Max. Boring Bar Capacity | mm | 40 |
| ACCURACY (AS PER JIS) | ||
| Positioning | mm | 0.008 |
| Repeatability | mm | 0.007 |
| TAIL STOCK | ||
| Quill Diameter | - | 70 |
| Quill Stroke | - | 80 |
| Taper in Quill | - | MT4 |
| OTHER DATA | ||
| Weight (Approx) | Kg | 3300 |
| Machine Dimensions (WxDxH) (Approx) | mm | 3150 x 1545 x 1650 |
| SYSTEMS | ||
| Fanuc | - | Oi TF |
| Siemens | - | 828D |
| Mitsubishi | - | E80 |
